Core Indicators and Equipment Selection Guide for Energy Storage Battery Testing

With the rapid development of renewable energy sources such as photovoltaics and wind power, energy storage batteries play a key role in scenarios including grid peak shaving, commercial and industrial energy storage, and residential storage. As energy storage systems continue to scale up, there is a growing demand for battery safety, reliability, and consistency. To ensure the long-term stable operation of energy storage systems, scientific battery testing and appropriate testing equipment are crucial. This article provides an in-depth analysis of the core indicators for energy storage battery testing and offers equipment selection recommendations for R&D, quality assurance, and system integration teams.

1. Importance of Energy Storage Battery Testing

Energy storage systems are typically designed for long-term operation (10–15 years), and the requirements for battery cycle life, safety, and consistency are far higher than for consumer electronics. Scientific testing enables enterprises to:

• Identify potential risks early, reducing future maintenance costs;

• Guide battery selection and system design;

• Ensure compliance with international standards and certifications (e.g., UL, IEC, GB/T).

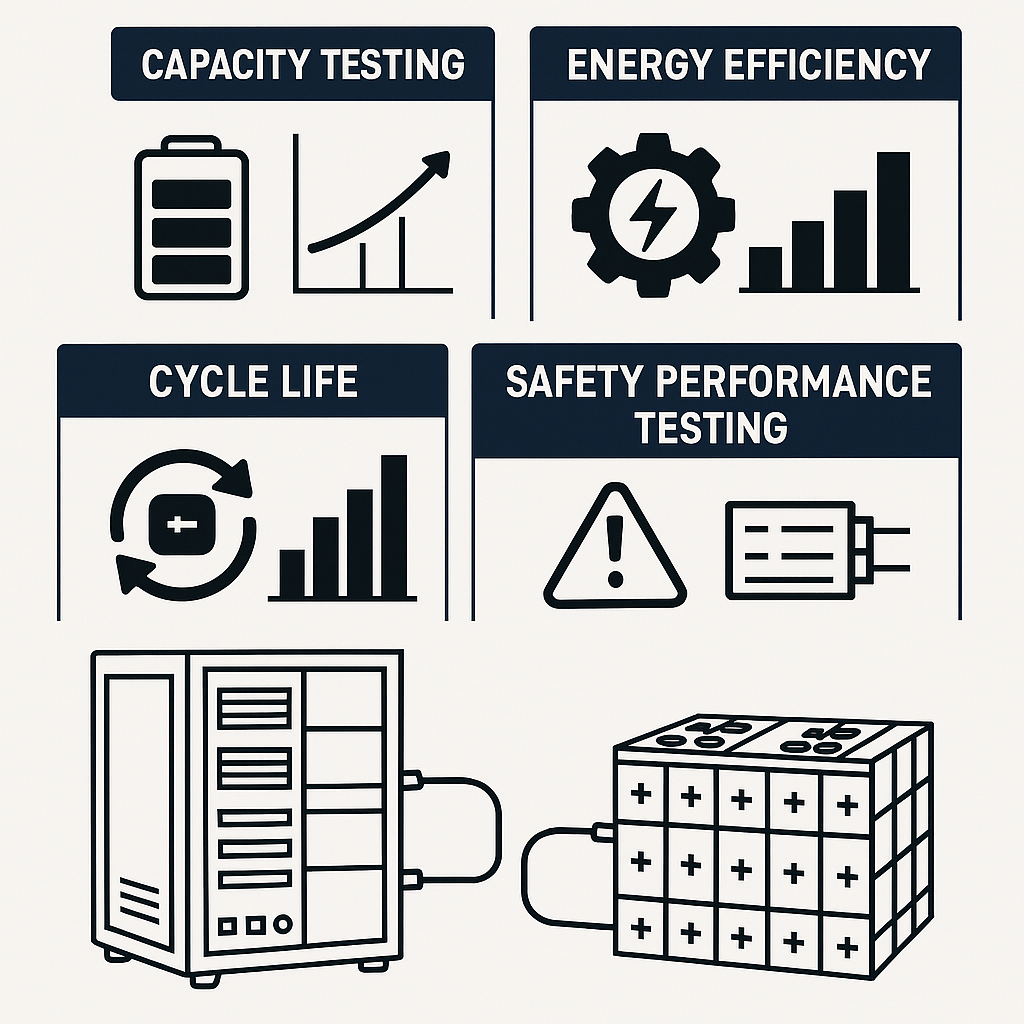

2. Core Indicators for Energy Storage Battery Testing

3. Testing Characteristics in Energy Storage Applications

Energy storage battery testing differs significantly from electric vehicle battery testing, featuring:

• High capacity and voltage: Module and pack voltages often reach several hundred to over a thousand volts, requiring high-voltage isolation in testing equipment.

• Long test duration: Cycle life tests can last months or even years, requiring extremely stable equipment.

• High channel count: Energy storage systems include large numbers of cells or modules, demanding large-scale parallel testing capabilities.

• High safety requirements: Testing involves large amounts of energy, requiring multiple hardware protections and emergency shutdown features.




4. Equipment Selection Guidelines

4.1 Voltage and Current Range

• Cell testing: typically 0–5 V;

• Module testing: typically 50–200 V;

• System-level testing: up to 1,000–1,500 V.

• Current capabilities should match application scenarios; high-rate testing may require hundreds of amps.

4.2 Accuracy and Stability

• Voltage accuracy: ≤0.05% FS; current accuracy: ≤0.1% FS;

• Temperature drift compensation recommended to ensure reliable long-term results.

4.3 Channel Count and Scalability

• Choose modular equipment for flexible expansion;

• Support parallel connection to achieve high-power or high-capacity testing.

4.4 Bidirectional Energy Feedback

• In high-energy testing scenarios, energy recovery systems can feed discharge energy back to the grid, reducing energy consumption and heat generation.

4.5 Software and Data Management

• Support automated testing scripts and customizable curve controls;

• Provide large-capacity data storage, cloud management, and analytics;

• Integrate with MES systems for full test data traceability.

4.6 Safety and Protection

• Overvoltage, undervoltage, overcurrent, overtemperature, and reverse-polarity protection;

• Emergency stop, smoke detection, insulation monitoring;

• Compliance with IEC, UL, and other international standards.




5. Future Trends: Intelligence and Standardization

With the large-scale growth of the energy storage industry, testing equipment trends include:

• Intelligent Scheduling: Automated test progress recognition for maximum equipment utilization;

• HIL Simulation: Accelerate BMS and system development through virtual battery models;

• Standardized Interfaces and Protocols: Facilitate integration of multi-vendor systems, improving test efficiency;

• Big Data Analytics: Use cloud platforms to rapidly analyze battery health and predict lifespan.




6. Conclusion

Energy storage battery testing is not only essential for quality control but also an important tool for system design and optimization. When selecting testing equipment, enterprises should consider their application scenarios and evaluate voltage/current range, accuracy, channel count, energy recovery, and safety features. Moving toward intelligent, standardized, and data-driven testing systems will provide a solid foundation for the long-term development of the energy storage industry.
