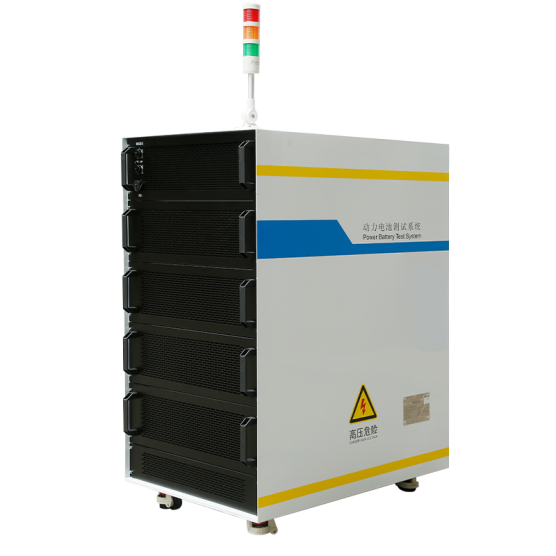

6V-300A Battery cell Charging and Discharging Equipment

Equipment Features

High Precision

Current and voltage accuracy can be as precise as ±0.01% F.S.

Utilizes advanced high-precision sensors.

24-bit current and voltage acquisition resolution.

High Dynamics

Current response time as low as ≤3ms, with stable voltage output.

Current conversion time as low as ≤5ms, enabling more accurate test waveforms.

High sampling rate, 10ms data recording, capturing detailed test data.

High Efficiency

Equipped with high-quality energy feedback technology for efficient recovery and cost reduction.

Current harmonic distortion (THDi) < 5%, resulting in lower operational losses.

Can effectively ensure operational efficiency.

High Safety

Mature product system, validated for long-term safe operation.

Comprehensive system protection with both hardware and software.

Selected high-quality components to ensure stable operation.

Self-check protection on power-up, reverse connection protection, upper and lower limit protection for test data, global protection, etc.

Performance Parameters

Parameter Specification Sheet

Voltage

Voltage Range:: Charging 0V~6V, Discharging 1V~6V

Measurement & Control Precision:: ±0.03% F.S. @25℃±10℃

Current

Current Ranges: ±30mA ~ ±300A

Measurement & Control Precision: ±0.03% F.S. @25℃±10℃

Current Rise Time (10%~90% F.S.):

Standard Series: ≤10ms

PRO Series: ≤3ms

Rx Series: ≤1ms

Current Conversion Time (10%~90% F.S.):

Standard Series: ≤20ms

PRO Series: ≤5ms

Rx Series: ≤2ms

Power

Charge-Discharge Efficiency: 80%

Single-Channel Power: 1500W

Power Accuracy: ±0.05% F.S. @25℃±10℃
