Current and voltage accuracy can be as precise as ±0.01% F.S.
Utilizes advanced high-precision sensors.
24-bit current and voltage acquisition resolution.
Current response time as low as ≤3ms, with stable voltage output.
Current conversion time as low as ≤5ms, enabling more accurate test waveforms.
High sampling rate, 10ms data recording, capturing detailed test data.
Power factor > 0.99, extremely high equipment utilization.
Equipped with high-quality energy feedback technology for efficient recovery and cost reduction.
Current harmonic distortion (THDi) < 5%, resulting in lower operational losses.
Can effectively ensure operational efficiency.
Mature product system, validated for long-term safe operation.
Comprehensive system protection with both hardware and software, selected high-quality components to ensure stable operation.
Self-check protection on power-up, reverse connection protection, upper and lower limit protection for test data, global protection, etc.

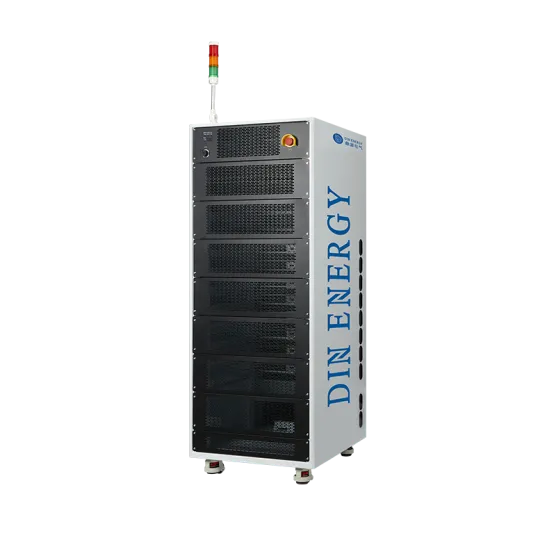

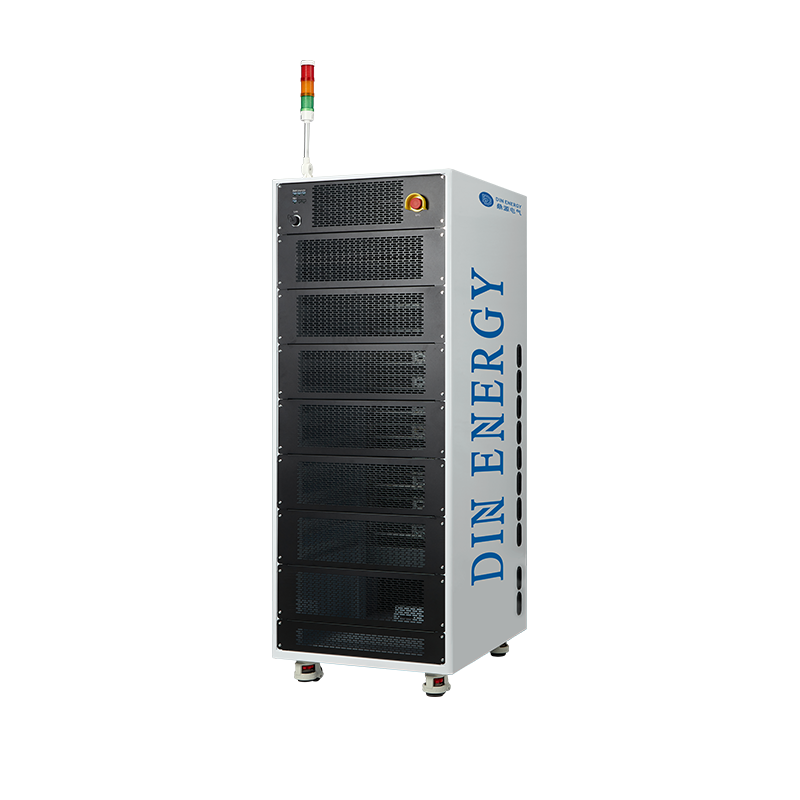

| Parameter | 60V-50A-24CH | |
| AC Input Power Supply | AC 380V ±10% / 50Hz | |
| Data Logging Time | 10ms | |
| THD | ≤5% | |
| Voltage | Voltage Range | Charging: 0V-60V Discharging: 5V-60V |
| Measurement & Control Precision | Regular Series: ±0.05% F.S. PRO Series: ±0.02% F.S. RX Series: ±0.01% F.S. | |
| Charge and Discharge Current | Current Ranges | ±10mA ~ ±50A |
| Measurement & Control Precision | Regular Series: ±0.05% F.S. PRO Series: ±0.02% F.S. RX Series: ±0.01% F.S. | |
| Current Rise Time(10%~90%F.S.) | Regular Series: ≤10ms PRO Series: ≤5ms RX Series: ≤3ms | |
| Current Conversion Time (-90%+90%F.S.) | Regular Series: ≤20ms PRO Series: ≤10ms RX Series: ≤5ms | |
| Efficiency | 80% | |
