Current and voltage accuracy can be as precise as ±0.01% F.S.
Utilizes advanced high-precision sensors.
24-bit current and voltage acquisition resolution.
Current response time as low as ≤3ms, with stable voltage output.
Current conversion time as low as ≤5ms, enabling more accurate test waveforms.
High sampling rate, 10ms data recording, capturing detailed test data.
Equipped with high-quality energy feedback technology for efficient recovery and cost reduction.
Current harmonic distortion (THDi) < 5%, resulting in lower operational losses.
Can effectively ensure operational efficiency.
Mature product system, validated for long-term safe operation.
Comprehensive system protection with both hardware and software.
Selected high-quality components to ensure stable operation.
Self-check protection on power-up, reverse connection protection, upper and lower limit protection for test data, global protection, etc.
Item | Specification |

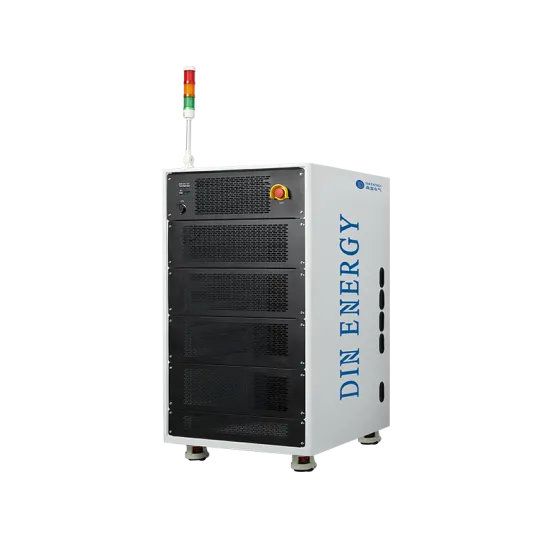

Cabinet Model | 6V-600A-16CH |
AC Input Power Supply | AC 380V ±10% / 50Hz |
Data Logging Time | 10ms |
Shortest Working Condition Time | 20ms |
Measurement & Control Precision:: ±0.03% F.S. @25℃±10℃
Current Ranges: ±30mA ~ ±600A
Measurement & Control Precision: ±0.03% F.S. @25℃±10℃
Current Rise Time (10%~90% F.S.):
Standard Series: ≤10ms
PRO Series: ≤3ms
Rx Series: ≤1ms
Current Conversion Time (10%~90% F.S.):
Standard Series: ≤20ms
PRO Series: ≤5ms
Rx Series: ≤2ms
Charge-Discharge Efficiency: 80%
Single-Channel Power: 3000W
Power Accuracy: ±0.05% F.S. @25℃±10℃
